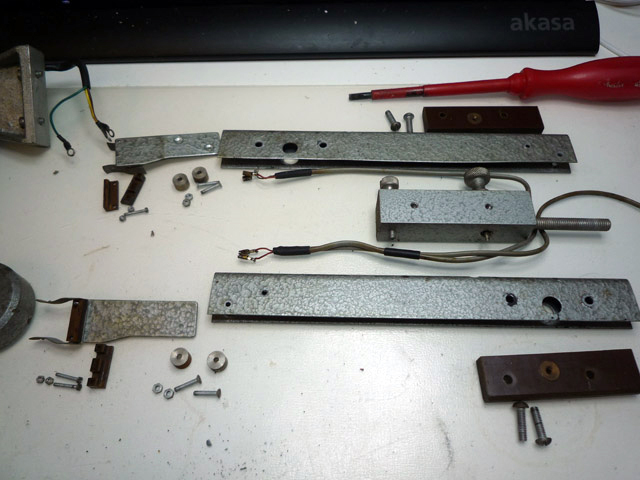

The pickup arms dismantled.
|
|
| |
|
|
|
|
|

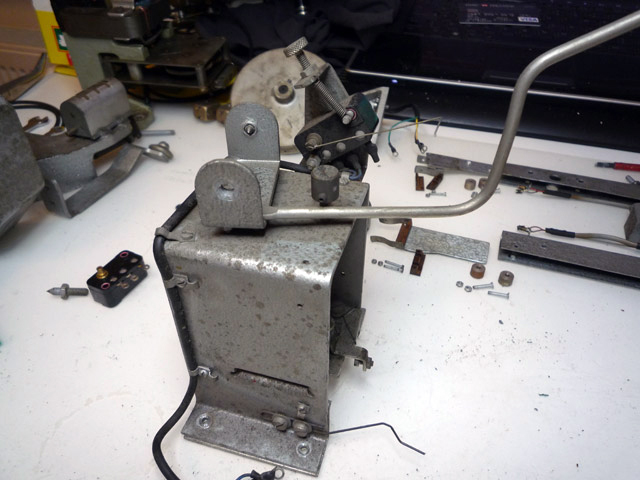

Pickup arm mounting bracket. The micro switch is to signal when the arm has reached the end of the record.
|
|
| |
|
|
|
|
|

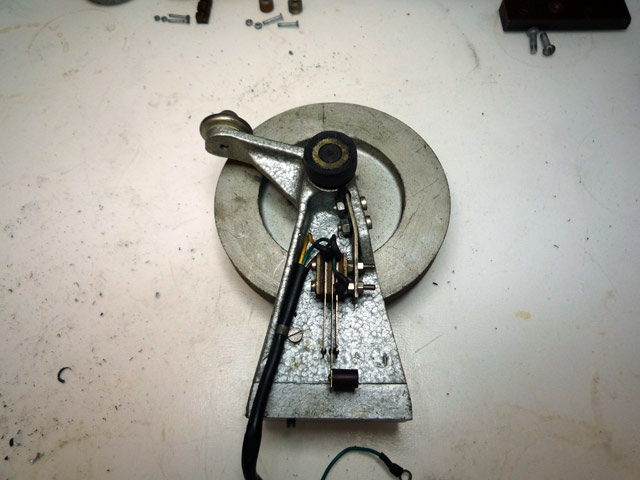

The 'turntable' drive. The record holder runs against the small rubber bush in the middle. The contact switch signals the drive motor which direction it should be running.
|
|
| |
|
|
|
|
